Magido Spray Cabinet Washers X-81 & X-51
Magido Spray Cabinet Washers X-81 & X-51
The X-81 & X-51 automatic spray jet wash systems that are constructed using AISI 304 stainless steel. Each wash system is equipped with a rotating turntable and a spray bar that uses water pressure to speed the cleaning process. They are engineered to reduce labor cost without sacrificing wash performance and are perfect for your toughest cleaning applications!
The machine is easily operated by loading the parts into the wash system, the operator simply starts the automatic cycle and then returns to the project at hand while the washer dose all the work. This series will significantly increase the throughput, productivity and profits of your workshop!

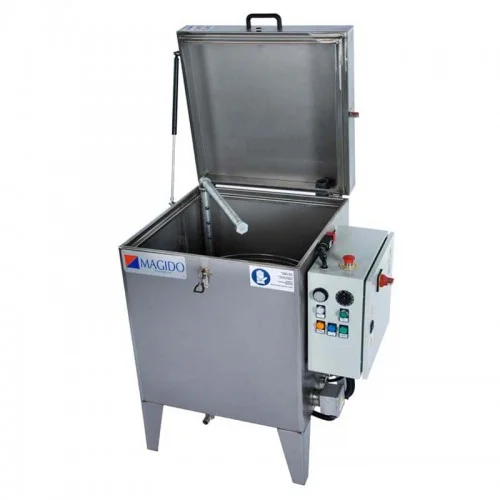

Magido L-55
Features:
Heavy Duty Stainless Steel Construction
Ergonomic Design
Swing Away Spray Manifolds
60 Minute Timer
Automatic Turntable Motor
Solution Filter
Thermostat Controlled Electrical Heater
Automatic Liquid Level Shut Off
Tank Drain
Low Noise Operation
Options:
Oils Skimmer
Tank Insulation
Auto Fill
Specifications:
Heater / Temperature - 3kW - 140 F
Load Height - 13.5"
Load Weight - 220lbs
Overall Dimensions - 35” x 35" x 64" ( with lid open )
Pump - 3/4 HP / 35 psi
Turntable Diameter - 23"
Wash Tank Capacity - 25 gal

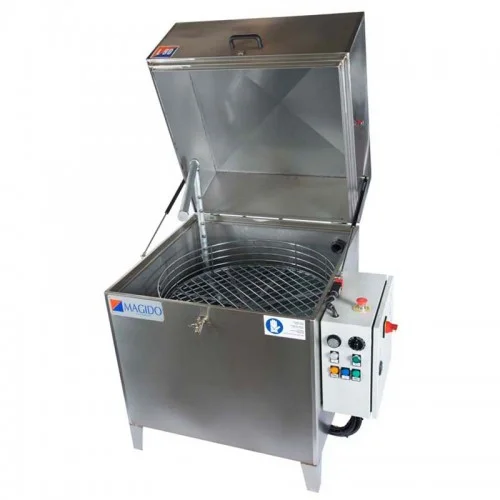

Magido L-90
Features:
Heavy Duty Stainless Steel Construction
Ergonomic Design
Swing Away Spray Manifolds
60 Minute Timer
Automatic Turntable Motor
Solution Filter
Thermostat Controlled Electrical Heater
Automatic Liquid Level Shut Off
Tank Drain
Low Noise Operation
Options:
Oils Skimmer
Tank Insulation
Auto Fill
Specifications:
Heater / Temperature - 4kW - 140 F
Load Height - 20"
Load Weight - 330lbs
Overall Dimensions - 46” x 42" x 68.5" (with lid open)
Pump - 1 HP / 35 psi
Turntable Diameter - 30"
Wash Tank Capacity - 30 gal

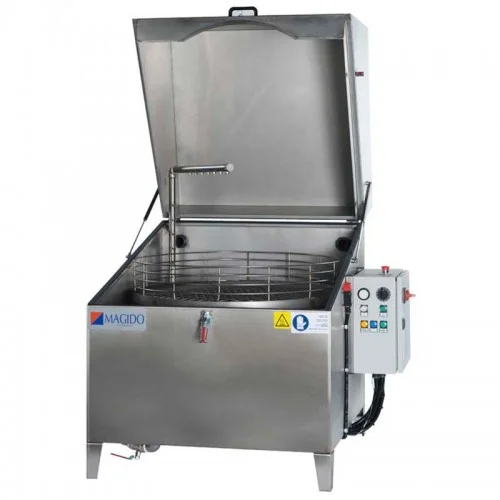

Magido L-101
Features:
Heavy Duty Stainless Steel Construction
Ergonomic Design
Swing Away Spray Manifolds
60 Minute Timer
Automatic Turntable Motor
Solution Filter
Thermostat Controlled Electrical Heater
Automatic Liquid Level Shut Off
Tank Drain
Low Noise Operation
Options:
Oil Skimmer
Tank Insulation
Auto Fill
Air Blow-Off Cycle
Heated and Fresh Water Rinse Cycles
Filtration Stages
PLC Touch Screen Control
Removable Turntable With Rolling Cart
Specifications:
Heater / Temperature - 6kW - 140 F
Load Height - 19.50"
Load Weight - 440lbs
Overall Dimensions - 51” x 48.5’” x 78.25" (with lid open)
Pump - 2 HP / 34 psi
Turntable Diameter - 35"
Wash Tank Capacity - 46 gal
Magido L-102
Features:
Heavy Duty Stainless Steel Construction
Ergonomic Design
Swing Away Spray Manifolds
60 Minute Timer
Automatic Turntable Motor
Solution Filter
Thermostat Controlled Electrical Heater
Automatic Liquid Level Shut Off
Tank Drain
Low Noise Operation
Options:
Oil Skimmer
Tank Insulation
Auto Fill
Air Blow-Off Cycle
Heated and Fresh Water Rinse Cycles
Filtration Stages
PLC Touch Screen Control
Removable Turntable With Rolling Cart
Specifications:
Heater / Temperature - 6kW - 140 F
Load Height - 19.50"
Load Weight - 440lbs
Overall Dimensions - 51” x 48.5”" x 78.25" (with lid open)
Pump - 1.2 HP / 37 psi
Number of Pumps - 2
Turntable Diameter - 35"
Wash Tank Capacity - 46 gal

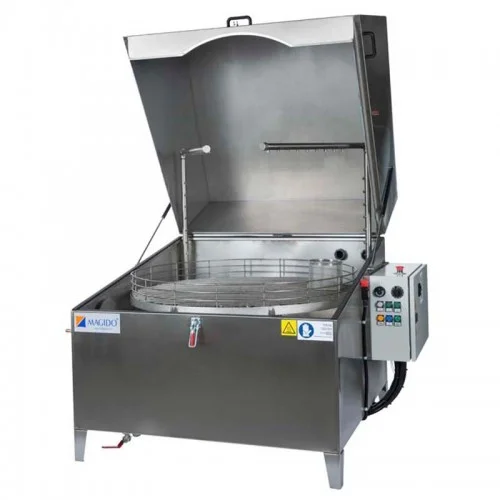

Magido L-122
Features:
Heavy Duty Stainless Steel Construction
Ergonomic Design
Swing Away Spray Manifolds
60 Minute Timer
Automatic Turntable Motor
Solution Filter
Thermostat Controlled Electrical Heater
Automatic Liquid Level Shut Off
Tank Drain
Low Noise Operation
Options:
Oil Skimmer
Tank Insulation
Auto Fill
Air Blow-Off Cycle
Heated and Fresh Water Rinse Cycles
Filtration Stages
PLC Touch Screen Control
Removable Turntable With Rolling Cart
Specifications:
Heater / Temperature - 10kW - 140 F
Load Height - 27.5"
Load Weight - 770lbs
Overall Dimensions - 69” x 59" x 89" (with lid open)
Pump - 2 HP / 35 psi
Number of Pumps - 2
Turntable Diameter - 45"
Wash Tank Capacity - 74 gal

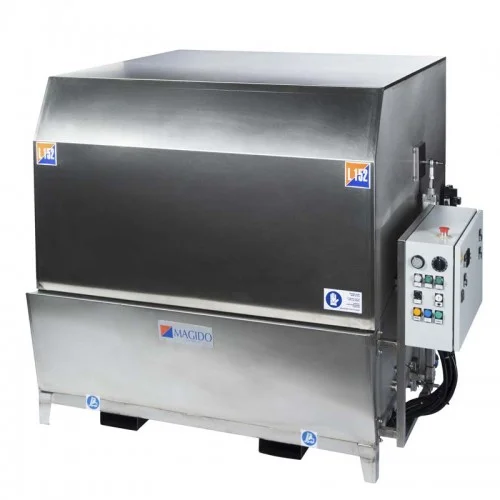

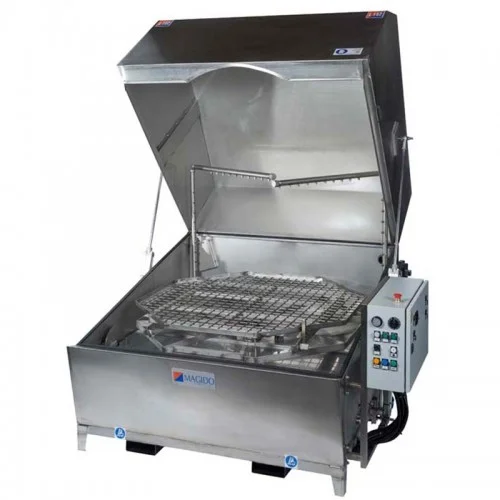

Magido L-152
Features:
Heavy Duty Stainless Steel Construction
Ergonomic Design
Swing Away Spray Manifolds
60 Minute Timer
Automatic Turntable Motor
Solution Filter
Thermostat Controlled Electrical Heater
Automatic Liquid Level Shut Off
Tank Drain
Low Noise Operation
Options:
Oil Skimmer
Tank Insulation
Auto Fill
Air Blow-Off Cycle
Heated and Fresh Water Rinse Cycles
Filtration Stages
PLC Touch Screen Control
Removable Turntable With Rolling Cart
Specifications:
Heater / Temperature - 12kW - 140 F
Load Height - 31.5"
Load Weight - 770lbs
Overall Dimensions - 85” x 70.75" x 94" (with lid open)
Pump - 2 HP / 35 psi
Number of Pumps - 2
Turntable Diameter - 51"
Wash Tank Capacity - 80 gal
| L – 55 CM/CT | L – 90 | L – 101 | L – 102 | L – 122 | L – 152 | |
| Turntable Diameter | 23" | 30" | 35" | 35" | 45" | 51” |
| Load Height | 13.5" | 20" | 19.5" | 19.5" | 27.5" | 31.5" |
| Load Weight | 220 lbs | 330 lbs | 440lbs | 440lbs | 770lbs | 770lbs |
| Overall Dimensions (Lid Open) | 35” x 35" x 64" | 46” x 42" x 68.5" | 51” x 48.5”" x 78.25" | 51” x 48.5”" x 78.25" | 69” x 59" x 89" | 85” x 70.75" x 94" |
| Number of Pumps | 1 | 1 | 1 | 2 | 2 | 2 |
| Pump | 3/4 HP / 35 psi | 1 HP / 35 psi | 2 HP / 34 psi | 1.2 HP / 37 psi | 2 HP / 34 psi | 2 HP / 35 psi |
| Flow Rate | 20 gpm | 24 gpm | 45 gpm | 29 gpm | 47.4 gpm | 30.5 gpm |
| Heater / Temperature | 3kW – 140 F | 4kW – 140 F | 6kW – 140 F | 6kW – 140 F | 10kW – 140 F | 12kW – 140 F |
| Wash Tank Capacity | 25 gal | 30 gal | 46 gal | 46 gal | 74 gal | 80 gal |
| Net Weight | 130 lbs | 175 lbs | 310 lbs | 330 lbs | 550 lbs | 830 lbs |
