Magido X-53
Magido X-53 Series
The X-53-series parts washers are engineered for automatic spray parts washing applications utilizing aqueous detergents at a temperatures of 160°F. The operation principle is based on a fixed platform on which the parts are placed, and a series of angled water jet nozzles that are fixed on a spray ramp optimally wash all the areas of the parts needed to be cleaned. X-53 Series wash systems are mainly categorized by the size and capacity of the turntable with sizes up to 60”x 60” in diameter. The turntable removes easily from the wash system on to a mobile cart for easy loading and unloading. All machines are constructed in AISI 304 stainless steel with additional options available for filtration, rinsing and drying stages.
Magido L-160
Features:
Heavy Duty Stainless Steel Construction
PLC Touch Screen Control
Ergonomic Design
60 Minute Timer
Automatic Turntable Motor
Thermostat Controlled Electrical Heater
Automatic Liquid Level Shut Off
Tank Drain
Tank Insulation
Auto Fill
Exhaust Fan
Low Noise Operation
Removable Turntable With Rolling Cart
Options:
Oil Skimmer
Air Blow-Off Cycle
Heated and Fresh Water Rinse Cycles
Filtration Stages
Specifications:
Heater / Temperature - 20kW – 160F
Load Height - 31.5"
Load Weight - 1,500 lbs
Overall Dimensions - 82" x 63" x 92"
Pump - 7.5 HP/ 58 psi / 132 gpm
Turntable Dimensions - 43” x 43”
Wash Tank Capacity - 87 gal

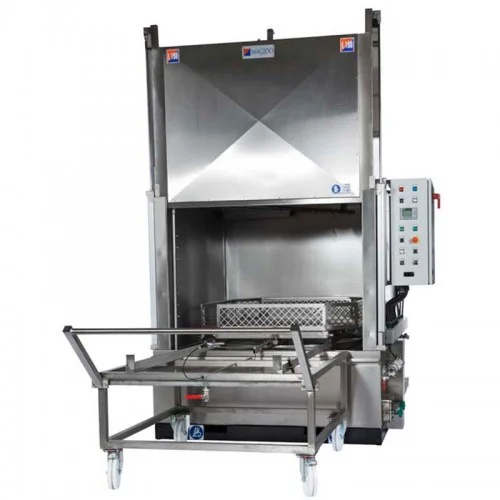

Magido L-190
Features:
Heavy Duty Stainless Steel Construction
PLC Touch Screen Control
Ergonomic Design
60 Minute Timer
Automatic Turntable Motor
Thermostat Controlled Electrical Heater
Automatic Liquid Level Shut Off
Tank Drain
Tank Insulation
Auto Fill
Exhaust Fan
Low Noise Operation
Removable Turntable With Rolling Cart
Options:
Oil Skimmer
Air Blow-Off Cycle
Heated and Fresh Water Rinse Cycles
Filtration Stages
Specifications:
Heater / Temperature - 30kW – 160F
Load Height - 35.5"
Load Weight - 1,500 lbs
Overall Dimensions - 90.5" x 72" x 91.5"
Pump - 10 HP/ 65 psi / 145 gpm
Turntable Dimensions - 51" x 51”
Wash Tank Capacity - 103 gal

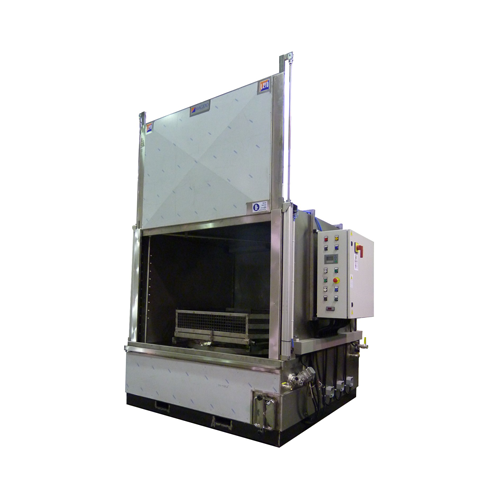

Magido L-210
Features:
Heavy Duty Stainless Steel Construction
PLC Touch Screen Control
Ergonomic Design
60 Minute Timer
Automatic Turntable Motor
Thermostat Controlled Electrical Heater
Automatic Liquid Level Shut Off
Tank Drain
Tank Insulation
Auto Fill
Exhaust Fan
Low Noise Operation
Removable Turntable With Rolling Cart
Options:
Oil Skimmer
Air Blow-Off Cycle
Heated and Fresh Water Rinse Cycles
Filtration Stages
Specifications:
Heater / Temperature - 30kW – 160F
Load Height - 39"
Load Weight - 1,500 lbs
Overall Dimensions - 98.5" x 80" x 100"
Pump - 10 HP/ 65 psi / 145 gpm
Turntable Dimensions - 59" x 59”
Wash Tank Capacity - 132 gal
Magido L-240
Features:
Heavy Duty Stainless Steel Construction
PLC Touch Screen Control
Ergonomic Design
60 Minute Timer
Automatic Turntable Motor
Thermostat Controlled Electrical Heater
Automatic Liquid Level Shut Off
Tank Drain
Tank Insulation
Auto Fill
Exhaust Fan
Low Noise Operation
Removable Turntable With Rolling Cart
Options:
Oil Skimmer
Air Blow-Off Cycle
Heated and Fresh Water Rinse Cycles
Filtration Stages
Specifications:
Heater / Temperature - 36kW – 160F
Load Height - 35"
Load Weight - 1,500 lbs
Overall Dimensions - 111” x 92” 100”
Pump - 10 HP/ 65 psi / 145 gpm
Turntable Dimensions - 71" x 71"
Wash Tank Capacity - 185 gal
| L-160 | L-190 | L-210 | L-240 | |
| Turntable Basket | 43” x 43” | 51” x 51” | 59” x 59” | 71” x 71” |
| Load Height | 31.5" | 35.5" | 39" | 35" |
| Heater / Temperature | 20kW – 160F | 30kW – 160F | 30kW – 160F | 36kW – 160F |
| Load Weight | 1,500 lbs | 1,500 lbs | 1,500 lbs | 1,500 lbs |
| Wash Tank Capacity | 77 gal | 103 gal | 132 gal | 185 gal |
| Pump | 7.5 HP/ 58 psi / 132 gpm | 10 HP/ 65 psi / 145 gpm | 10 HP/ 65 psi / 145 gpm | 10 HP/ 65 psi / 145 gpm |
| Overall Dimensions (Door Closed) | 82" x 63" x 92" | 90.5" x 72" x 91.5" | 98.5" x 80" x 100" | 111” x 92” 100” |
| Overall Dimensions (Door Open) | 82" x 63" x 116" | 90.5" x 72" x 116" | 98.5" x 80" x 132" | 111” x 92” 132” |
