Top-Load

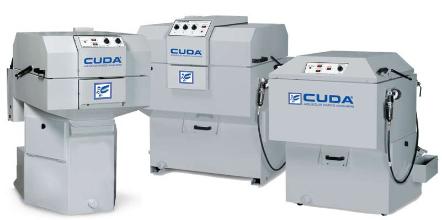

Cuda Top-Load Parts Washer Models

Cuda Top-load parts washers are the clear choice for your cleaning jobs.  Pressurized hot water and specialized industrial detergents clean parts automatically.  Which Increases your productivity; saving you money and protecting your workers from nasty solvents and manual scrubbing.

The 90-day labor warranty for all Cuda parts washers is automatically extended to a 1-Year Labor Warranty with exclusive use of Cuda detergents.  Cuda parts washers are also covered by a 1-year parts warranty.


Currently Not In Production

Currently Not In Production

Cuda 2216:  Our most compact top-loading

  • Only 32-inches wide

  • 500-lb load capacity

  • 22-inch turntable

  • 16-inch working height

  • 32 Gallon sump capacity

  • 1 HP pump motor producing 28 GPM @ 30 PSI

  • Operates a 150-170 degrees F

  • Dimensions - 52''h x 32''w x 42"h

  • Ship Weight - 616lbs

  • Available in Stainless Steel & Mild Steel


Temporarily Unavailable

Cuda 2412:  Versatile for use anywhere in the shop

  • Only 35-inches wide

  • 250-lb load capacity

  • 24-inch turntable

  • 12-inch working height

  • 1/2 HP flush sealed pump

  • Upper drive arm rotates turntable

  • Available in Stainless Steel & Mild Steel

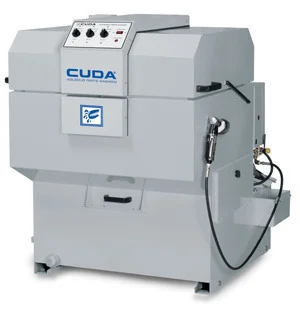

Cuda 2518:  Top of the line top-load washer

  • 500-lb load capacity

  • 25-inch turntable

  • 18-inch working height

  • Built to withstand the harsh demands of everyday use

  • Comes standard with a time-tested chain drive assembly

  • Virtually maintenance-free sealess pump

  • Extra-easy access to the sump and removable debris screen

  • Available in Stainless Steel & Mild Steel


Currently Not In Production

Cuda SJ-15:  Our water propelled model

  • 350-lb load capacity

  • 32" x 21" Basket dimension

  • 90 gallon sump capacity

  • 3 HP pump motor delivering 37 GPM @ 30 PSI

  • Uses patented spray wash technology that eliminates the need for drive motor, gears & pulleys

  • Water-Propelled spray arm w/ 23 nozzles

  • Stationary parts basket, parts are hit from every angle while being cleaned

  • Available in Stainless Steel & Mild Steel


Features

Automatic Oil Skimmer

Removable Debis Screen

With stainless steel disc and wiper blades, the skimmer effectively removes oil and grease from the cleaning solution to prolong the life, and to provide a means for convenient oil and grease disposal.

The patented front access debris screen filters debris particles from the wash solution to ensure clear spray nozzle operation, and also provides a safeguard against small parts that might accidentally be washed through from the cleaning chamber.  The debris screen is standard on the Cuda 2518 and Cuda 2412 series.

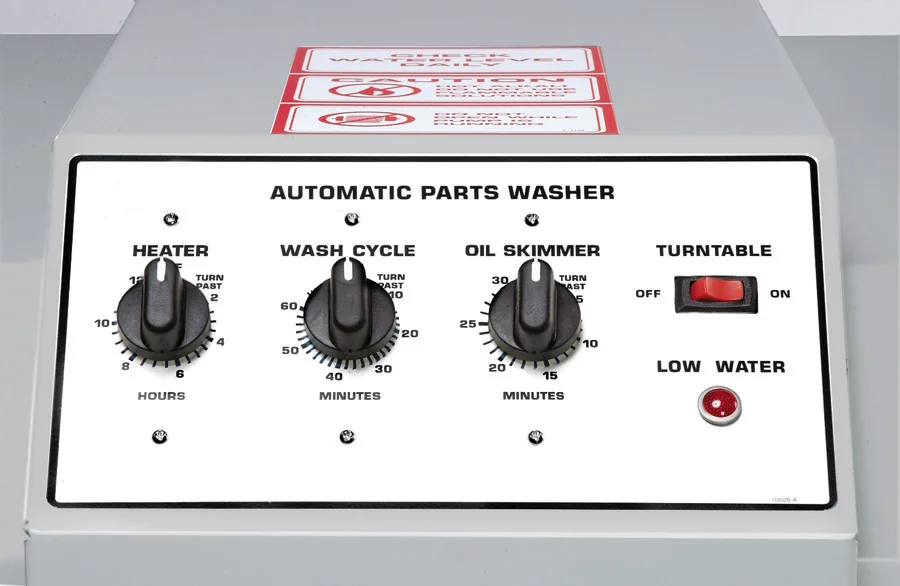

Control Panel

All Cuda top-load parts washers have simple control panels for the heater, wash cycle operation and a low-water shut-off indicator.

Easy Access Sump Cover

The easy access sump cover permits quick and easy cleaning of the Cuda parts washer.


Options

  • Automatic Water Fill - Automatically adds water if water level drops

  • Filtration System & Sump Sweep - Quickly removes sediment from sump floor through 100 micron filters to help extend life of wash water.

  • Preferred Options Package - Parts Basket, Containment Ring and Oil Container

  • Heater & Skimmer Timers - 24 hour/7 Day

  • Detail Brush - (with pump) Allows easy cleaning of blind holes and difficult areas

  • Power Brush - (pneumatic) Removes stubborn gasket materials and carbon deposits

  • Small Parts Basket - for smaller parts cleaning

  • Containment Ring - 22", 24" or 25" diameter - keeps parts on turntable

  • 60-Mesh Debris Screen Tray Insert - Provides finer screening of sump solution

  • Hour Meter - Displays elapsed time

  • PK-100D Sump Cleaner - Provides an economical and efficient way to process and extend the life of wastewater

  • Oil Drain Container - Collects oil from automatic oil skimmer

  • Wastewater Drum Evaporator - Is ideal for eliminating very low volumes of wasterwater for drying sludge

  • Stainless Steel Upgrade - Available for all models, call for quote


Specifications

Model 2412 Series 2216 Series 2518 Series SJ-15 Series
Working Height 12 Inches 16 Inches 18 Inches 18 Inches
Turntable Diameter 24 Inches 22 Inches 25 Inches 25 Inches
Load Capacity 250 lbs. 500 lbs. 500 lbs. 350 lbs.
Power Available .5 HP, 120V, 1 Ph, 13 Amps
.5 HP, 208V, 1 Ph, 26 Amps
.5 HP, 230V, 1 Ph, 24 Amps
1 HP, 115V, 1 Ph, 15 Amps
1 HP, 208V, 1 Ph, 30 Amps
1 HP, 208V, 3 Ph, 21 Amps
1 HP, 230V, 1 Ph, 28 Amps
1 HP, 230V, 3 Ph, 20 Amps
1 HP, 460V, 3 Ph, 10 Amps
1 HP, 575V, 3 Ph, 8 Amps
2 HP, 208V, 1 Ph, 31 Amps
2 HP, 230V, 1 Ph, 29 Amps
2 HP, 230V, 3 Ph, 18 Amps
1 HP, 115V, 1 Ph, 15 Amps
2 HP, 208V, 1 Ph, 32 Amps
2 HP, 208V, 3 Ph, 31 Amps
2 HP, 230V, 1 Ph, 35 Amps
2 HP, 230V, 3 Ph, 21 Amps
2 HP, 460V, 3 Ph, 10 Amps
3 HP, 208V, 1 Ph, 40 Amps
3 HP, 208V, 3 Ph, 24 Amps
3 HP, 230V, 1 Ph, 38 Amps
3 HP, 230V, 3 Ph, 23 Amps
3 HP, 460V, 3 Ph, 11 Amps
3 HP, 575V, 3 Ph, 9 Amps
3 HP, 208V, 1 Ph, 42 Amps
3 HP, 208V, 3 Ph, 25 Amps
3 HP, 230V, 1 Ph, 38 Amps
3 HP, 230V, 3 Ph, 23 Amps
3 HP, 460V, 3 Ph, 11 Amps
3 HP, 575V, 3 Ph, 9 Amps
Pump Capacity 20 GPM @ 22 PSI
28 GPM @ 30 PSI
32 GPM @ 40 PSI
28 GPM @ 30 PSI
32 GPM @ 40 PSI
50 GPM @ 50 PSI 37 GPM @ 30 PSI
Tank Capacity 25 gal 25 gal 50 gal 90 gal
Electric Heater 1.8 kW
4.5 kW
2 kW
4.5 kW
6 kW
6kW 6kW
Dimensions 45”h x 35”w x 41”d 52”h x 32”w x 42”d 50”h x 40”w x 51”d 49”h x 48”w x 46”d
Ship Weight 424 lbs. 461 lbs. 706 lbs. 773 lbs.

  • Conforms to ANSI/UL Standard 73 eights edition

  • Meets OSHA Regulations 1910.399

  • Certified to CAN/CSA Standard C-22.2 #68-92

  • All Cuda Standard parts washers are ETL-C Certified.
