Hot Water
Gas Powered Pump - Oil Fired Burner
HDS PE
Optimum performance at remote locations
These durable, skid-mounted models are designed for optimum cleaning performance at remote locations and feature Kärcher’s unique 12V downdraft burner system. The highly compact burner is more than 92% efficient, resulting in better heat transfer using much less fuel. They feature belt-drive crankcase-style pumps. Certified to UL and CSA safety standards.
Features:
Industrial-duty, tri-plunger, oil-bath, belt-drive Kärcher KT pump with 7-year warranty, brass pump head, and Tru-Trak belt adjustments; operates at a low RPM for low-maintenance operation and long life.
Proprietary scale inhibiting system prevents build-up of mineral deposits inside the coil.
Rust-free 11 gallon Polyethylene diesel and gasoline tanks for hours of uninterrupted operation.
Infinitely variable operating pressure, water volume, temperature control, and detergent metering.
Kärcher’s 92% efficient top-fired burner delivers more heat from less fuel for the lowest operating costs in the industry.
Kärcher safety features include pressure switches, rupture disk, low-water and low-fuel protection that shuts down burner when incoming water and fuel are insufficient or interrupted.
EASY!Force gun with cruise control like technology - uses its own recoil.
| Model | HDS 4.0/32 Pe | HDS 5.5/35 Pe |
| GPM | 4 | 5.5 |
| PSI | 3200 | 3500 |
| Drive | Belt | Belt |
| CC | 389 | 688 |
| Engine | Honda GX390 | Honda GX630 |
| Pump | Kärcher KT | Kärcher KT |
| Ship Weight | 692 | 741 |
| Ship Dimensions | 51 x 33 x 43 | 51 x 33 x 43 |
HDS P/PE CAGE
Outstanding on all terrains.
Built on a rugged 1-1/4” powder coated steel frame, these compact gas roll cage models are designed for construction sites, farms and factories. The different models deliver hot water cleaning of up t o 3500 PSI. Each features a Kärcher pump with limited 7-year warranty, industrial-grade motor and flat-free tires.
Features:
Direct-drive tri-plunger pumps
Stainless steel coil wrap standard
Weldless, corrosion resistant aluminum frame
Rugged frame with powder finish
Schedule 80 heating coil
| Model | GPM | PSI | Drive | CC | Engine | Engine | Start | Pump | Burner | Ship Weight | Ship Dimensions |
| HDS 3.5/30 P Cage | 3.50 | 3000 | Belt | 337 | Honda GX340 | Honda GX341 | Recoil | Kärcher KS | 12V DC | 550 | 50” x 40” x 58” |
| HDS 3.5/35 Pe Cage | 3.50 | 3500 | Belt | 389 | Honda GX390 | Honda GX391 | Electric | Kärcher KS | 13V DC | 595 | 50” x 40” x 58” |
HDS PE/DE/GE CAGE
The industrial workhorse
Kärcher Series oil-fired skids are the workhorses of the pressure washer industry. Delivering up to 5.6 GPM of hot water at up to 3500 PSI, these rugged gas and diesel-powered machines are built on an open frame using heavy-gauge 1-1/4” powder coated steel and are ideal for mounting in a truck or on a trailer. The electric-start engine and powerful belt-drive Kärcher KT pump are isolated from the rest of the machine on a shock-mounted sub-frame to reduce vibration. Steam combination comes standard with all models.
Features:
Honda, Vanguard, Kubota engines
1-1/4” full steel skid frame
Burner available in 12V DC or 120V AC
Kärcher belt-drive tri-plunger pumps
1/2” Schedule 80 heating coil
Stainless steel coil wrap
Power generator on select models
| Model | GPM | PSI | Drive | CC | Engine | Pump | Burner | Ship Weight | Ship Dimensions |
| HDS 3.9/30 Pe Cage | 3.9 | 3000 | Belt | 389 | Honda GX390 | Kärcher KT | 12V DC | 790 | 54” x 56” x 55” |
| HDS 4.8/30 Pe Cage | 4.8 | 3000 | Belt | 570 | Vanguard 18 | Kärcher KT | 12V DC | 800 | 54” x 56” x 55” |
| HDS 4.8/30 Pe Cage | 4.8 | 3000 | Belt | 570 | Vanguard 18 | Kärcher KT | 120V AC | 945 | 54” x 56” x 55” |
| HDS 4.7/35 Pe Cage | 4.7 | 3500 | Belt | 688 | Honda GX630 | Kärcher KT | 12V DC | 855 | 54” x 56” x 55” |
| HDS 4.7/35 Pe Cage | 4.7 | 3500 | Belt | 688 | Honda GX630 | Kärcher KT | 120V AC | 890 | 54” x 56” x 55” |
| HDS 5.6/35 Pe Cage | 5.6 | 3500 | Belt | 688 | Honda GX660 | Kärcher KT | 12V DC | 852 | 54” x 56” x 55” |
| HDS 5.6/35 Pe Cage | 5.6 | 3500 | Belt | 688 | Honda GX630 | Kärcher KT | 120V AC | 970 | 54” x 56” x 55” |
| HDS 5.6/35 De Cage | 5.4 | 3500 | Belt | 1123 | Kubota D1105 | Kärcher KT | 12V DC | 1214 | 54” x 56” x 55” |
| HDS 5.6/35 De Cage | 5.4 | 3500 | Belt | 1123 | Kubota D1105 | Kärcher KT | 120V AC | 1300 | 54” x 56” x 55” |
| HDS 8.0/30 Ge Cage | 8.0 | 3000 | Belt | 688 | Honda GX660 | Kärcher KX | 12V DC | 805 | 54” x 56” x 55” |
| HDS 8.0/30 Ge Cage | 8.0 | 3000 | Belt | 688 | Honda GX660 | Kärcher KX | 120V AC | 865 | 54” x 56” x 55” |
Electric Pump - Oil fired Burner
HDS CAGE
Rugged operations
Built on a rugged 1-1/4” powder coated steel frame, these compact electric roll cage models are designed for construction sites, farms and factories where electricity is available. The three models deliver hot water cleaning of up to 2000 PSI using 120V or 230V/1ph. Each features a Kärcher direct-drive crankcase-style pump with limited 7-year warranty, industrial-grade motor, and flat-free tires.
Features:
Smart Features:
Easy-to-attach downstream detergent injection with quick couplers and brass soap nozzle.
Fuel filter/water separator ensures pure fuel supply.
EASY!Force trigger gun with cruise control like technology uses its own recoil force to hold the trigger down - so, no more sore hands after hours of use.
Industrial-grade motors provide reliable power to the pump.
Industrial-grade, tri-plunger, oil-bath, direct-drive, Kärcher pump with 7-year warranty.
50 ft. of durable, wire braid hose rated for 3000 PSI and with hose guard for burst.
Safety relief valve attached to discharge side for protection against excess pressure build up.
Insulated Schedule 80 heating coil is made of 1/2-inch steel pipe and cold-rolled; comes standard with stainless steel coil wrap.
| Model | GPM | PSI | Drive | HP | Electrical | Amps | Pump | Ship Weight | Ship Dimensions |
| HDS 2.0/10 Ed Cage | 2.10 | 2.1 | Direct | 1.5 | 120V / 1ph | 15 | Kärcher KF | 480 | 50” x 40” x50” |
| HDS 1.9/15 Ed Cage | 1.90 | 1.9 | Direct | 2 | 120V / 1ph | 20 | Kärcher KF | 480 | 50” x 40” x50” |
| HDS 3.5/20 Ea Cage | 2.50 | 3.5 | Direct | 5 | 230V / 1ph | 22 | Kärcher KF | 500 | 50” x 40” x50” |
HDS Hand Truck
Heavy-duty output
Kärcher's North American hand truck design features heavy-gauge 1 1/4" steel frame with powder coat finish and a high pressure rupture disc rated to 7000 lbs to protect the operator against injury. Units come with belt-drive Kärcher crankcase pumps. All models are ETL certified to UL and CSA safety standards.
Features:
Cast iron pulley system with OSHA-compliant, totally enclosed belt guard, and easy-to-adjust belt tension (belt-drive models).
Water resistant control box, burner on/off switch and adjustable thermostat.
EASY!Force gun with cruise control like technology - uses its own recoil force to hold the trigger down - so, no more sore hands after hours of use.
| Model | GPM | PSI | Drive | HP | Electrical | Amps | Pump | Ship Weight | Ship Dimensions |
| HDS 3.9/20 Ea | 3.90 | 2000 | Belt | 6 | 230V / 1ph | 29 | Kärcher KM | 660 | 49 x 40 x 50 |
| HDS 3.5/30 Ea | 3.50 | 3000 | Belt | 7.5 | 230V / 1ph | 36 | Kärcher KM | 690 | 49 x 40 x 50 |
| HDS 3.5/30 Eb | 3.50 | 3000 | Belt | 7.5 | 230V / 3ph | 25 | Kärcher KM | 605 | 49 x 40 x 50 |
| HDS 3.5/30 Ec | 3.50 | 3000 | Belt | 7.5 | 460V / 3ph | 13 | Kärcher KM | 605 | 49 x 40 x 50 |
HDS Compact Class
It’s all in the detail
Kärcher’s German-built electric hot water machines are the most advanced on the market, featuring Kärcher’s patented axial pump integrated with a 2-pole motor for optimum efficiency. Kärcher’s efficient and compact downdraft-fired burner uses far less fuel than standard heat exchangers. Units come standard with low-fuel shut-off, low-water protection, high-temperature shut-off, thermal overload protection, soft-grip gun, and 50’ hose. All units are ETL certified to UL and CSA standards.
Features:
Eco!efficiency mode – economical and environmentally friendly, even during longer periods of use.
Reduces fuel consumption and CO2 emissions by 20%.
Robust wheels and steering mechanism for maneuverability.
Large integrated handles in the chassis.
Integrated tilting aid for effortlessly negotiating obstacles such as steps and curbs.
| Model | GPM | PSI | Drive | HP | Electrical | Amps | Pump | Ship Weight | Ship Dimensions |
| HDS 2.3/12 C Ed | 2.30 | 1100 | Direct | 2.8 | 110-120V/1ph | 18.5 | Kärcher Axial | 270 | 40 x 28 x 41 |
MOJAVE SERIES
Robust and innovative.
The Kärcher Mojave series is the perfect all-around machine for a variety of applications such as agriculture, automotive, and transportation. The Mojave delivers the highest performance for best cleaning results - all combined in a robust package. Innovative features engineered with high quality components make for a product able to withstand harsh working conditions.
New, innovative, features and upgrades:
Auto start/stop is standard
Equipped with EASY!Force trigger gun, hour meter, status LED, crane hook, and other upgraded features
Steam stage, long life hoses, and stainless steel side panels included on Premium units
Higher performance, highest efficiency
Best in class with 91% burner performance.
Higher cleaning performance due to increased water temperature.
Industrial motors optimized for voltage deviations.
Large diesel tank (10 gal) for longer hot water operation.
Robust and innovative
Very robust cage frame with 12" non-flat wheels
Excellent mobility including a crane hook for loading of the machine.
Two water filters for maximum machine uptime.
Dispensing system for Kärcher coil and pump protectant included.
More features, more options
Hour meter included on operator's panel.
Single dial operation with scale up to 230°F on Standard units and up to 311°F steam stage on Premium units.
Operators panel with LED status lights for faster service.
Wand and hose holders included.
Accessories with best ergonomics in the market
EASY!Force trigger gun with zero holding provides maximum user comfort during hours of continuous use.
Karcher Power nozzle with 40% higher cleaning performance.
Hose reel bracket kit available for pivoting hose reel to be mounted on top of the machine.
| Model | GPM | PSI | Motor Type | Electrical | Amps | Steam Mode | Pressure Adjustment | Ship Weight | Ship Dimensions |
| HDS 3.0/20-4 Ea/Eg Standard | 1.4-3.0 | 580-2000 | 4-pole | 208/230V / 1ph | 26 | No | At unloader | 507 | 50” x 40” x 50” |
| HDS 3.5/30-4 Ea Standard | 2.1-3.5 | 1150-3000 | 4-pole | 230V / 1ph | 35 | No | At unloader | 507 | 50” x 40” x 50” |
| HDS 4.0/20-4 Ea Premium | 1.7 - 4.0 | 400 - 2000 | 4-pole | 230V / 1ph | 30 | Yes | Servo Control | 550 | 50” x 40” x 50” |
| HDS 4.0/20-4 Eh/Eb Premium | 1.8 - 4.0 | 400 - 2000 | 4-pole | 208-230V/3ph | 24 | Yes | Servo Control | 550 | 50” x 40” x 50” |
| HDS 4.0/20-4 Ec Premium | 1.8 - 4.0 | 400 - 2000 | 4-pole | 460V/3ph | 12 | Yes | Servo Control | 550 | 50” x 40” x 50” |
| HDS 4.0/30-4 Eh/Eb Premium | 1.4 - 4.0 | 400 - 3000 | 4-pole | 208-230V/3ph | 30 | Yes | Servo Control | 550 | 50” x 40” x 50” |
| HDS 4.0/30-4 Ec Premium | 1.4 - 4.0 | 400 - 3000 | 4-pole | 460V/3ph | 14 | Yes | Servo Control | 550 | 50” x 40” x 50” |
| HDS 4.0/30-4 Ef Premium | 1.4 - 4.0 | 400 - 3000 | 4-pole | 575V/3ph | 12 | Yes | Servo Control | 550 | 50” x 40” x 50” |
| HDS 5.0/30-4 Eh/Eb Premium | 1.7 - 5.0 | 400 - 3000 | 4-pole | 208-230V/3ph | 34 | Yes | Servo Control | 550 | 50” x 40” x 50” |
| HDS 5.0/30-4 Ec Premium | 1.7 - 5.0 | 400 - 3000 | 4-pole | 460V/3ph | 16 | Yes | Servo Control | 550 | 50” x 40” x 50” |
| HDS 5.0/30-4 Ec Premium | 1.7 - 5.0 | 400 - 3000 | 4-pole | 575V/3ph | 13 | Yes | Servo Control | 550 | 50” x 40” x 50” |

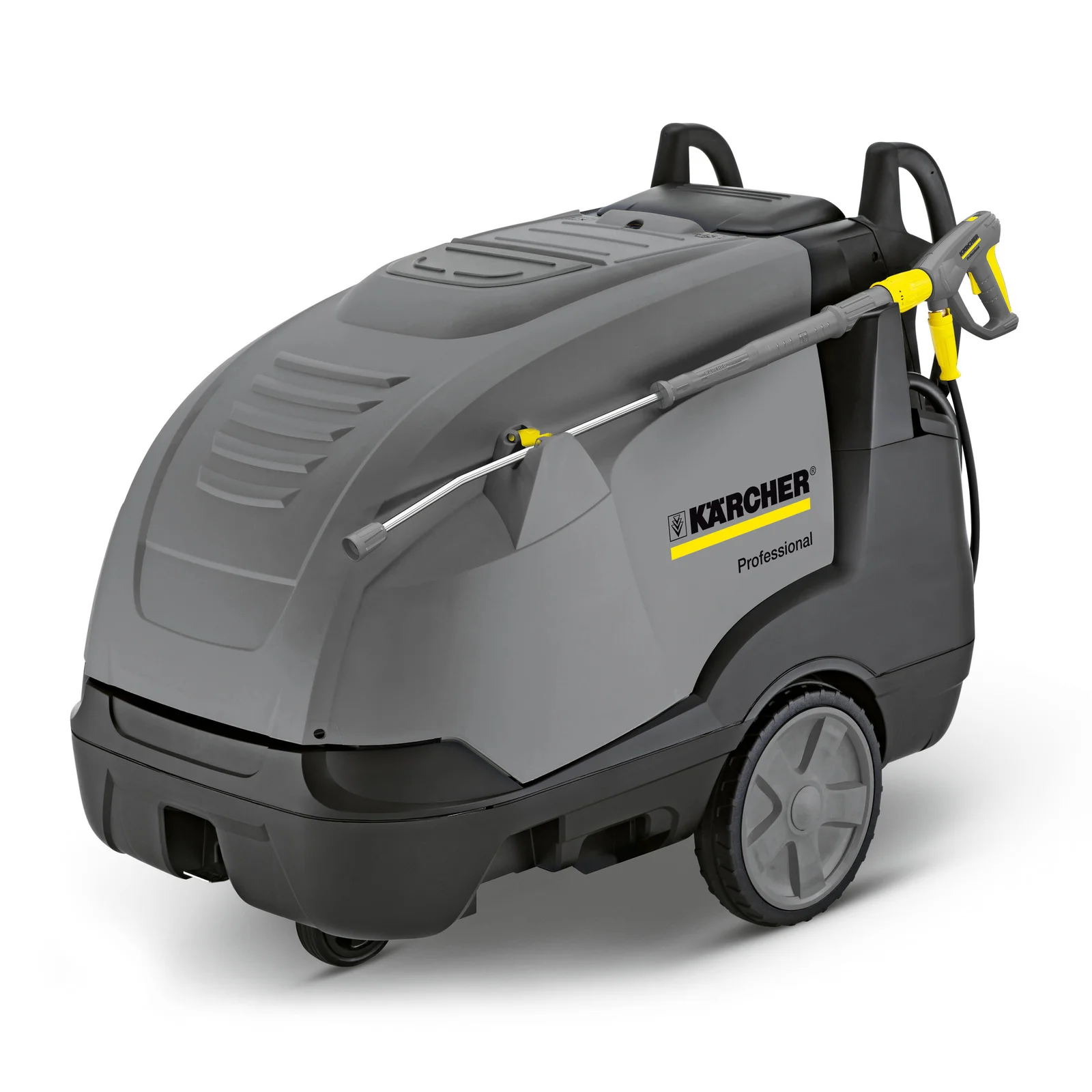

HDS Special CLASS
The zero emission specialist
CLEAN WITH HOT WATER or WET STEAM TO DISINFECT AND SANITIZE.
The emission-free HDS-E 3.3/25-4M Ec with electric heater is ideal where exhaust gases are undesirable or prohibited. Thanks to the unique type of heater insulation and Kärcher Eco!efficiency mode, the HDS-E 3.3/25-4M Ec is efficient and eco-friendly. Models are ETL certified to UL & CSA safety standards.
Features:
Eco!efficiency mode – economical and environmentally friendly, even during longer periods of use.
Intuitive operation with large single-button selector switch.
| Model | GPM | PSI | Drive | HP | Electrical | Amps | Pump | Ship Weight | Ship Dimensions |
| HDS-E 3.3/25-4M Ec | 1.6 – 3.3 | 465 – 2520 | Direct | 7.5 | 460V / 3ph | 31 | Kärcher Axial | 290 | 50 x 32 x 45 |
| HDS-E 3.3/25-4M Ef | 1.6 – 3.3 | 465 – 2520 | Direct | 7.5 | 575V / 3ph | 28 | Kärcher Axial | 352 | 50 x 32 x 45 |
HDS STATIONARY - NG / LP - North American - Belt Drive
Innovation inside and out
The Liberty Kärcher HDS natural gas and LP-heated cabinet pressure washer delivers up to 9.5 gpm at 3000 psi of industrial power. Built in the U.S.A., each model is constructed with anodized structural rivets, industrial motors and Kärcher pumps that are backed by a 7-year warranty.
Features:
All-access cabinet design with six lift out panels and easy lock fasteners provides easy access to components for maintenance in tight situations.
Swing-out cast iron burner ring with separate “stay-in-place” ignition pilot light allows easy access and removal of the burner ring.
Improved “Stay-Tite” belt tensioning system maintains belt tension on the pump with a torsion bar for precise tension adjustment.
The heating coil is made of leak-free, cold rolled, schedule 80 steel pipe and is wrapped with a thick foil blanket insulation that keeps cabinet walls cool to the touch.
EASY!Force gun with cruise control like technology.
Over 30 Configurations Available
Belt Drive
HDS STATIONARY - NG / LP - Direct Drive
Innovation inside and out.
The innovative, rugged design of the new Kärcher Classic HDS natural gas and LP-heated cabinet pressure washer delivers up to 5 gpm at 3,000 psi of industrial power. Built in the U.S.A., each model is constructed with anodized structural rivets, a water cooled electric motor, standard auto start/stop and Kärcher’s axial direct-drive pump backed by a 7-year warranty. All models are ETL certified to UL and CSA safety standards.
Smart features:
Integrated RM 110 reservoir and steam stage
Inlet/outlet connections can be easily moved to either side of the unit.
Auto start-stop for on-demand cleaning
EASY!Force gun with cruise control like technology
“Stay-in-Place” ignition pilot light with swing out burnerring
Cool wall cabinet construction
Pulsation damper
Direct Drive
| Model | GPM | PSI | Drive | Electrical | Amps | Pump | HP | Ship Weight | BTU | Ship Dimensions |
| HDS 3.5/23 Eg | 3.5 | 2300 | Direct | 208V / 1ph | 26 | Kärcher Axial / 1725 | 8.1 | 695 | 310000 | 51 x 32 x 45 |
| HDS 4.5/22 Ea | 4.5 | 2200 | Direct | 230V / 1ph | 30 | Kärcher Axial / 1725 | 9.5 | 695 | 393000 | 51 x 32 x 45 |
| HDS 3.5/30 Ea | 3.5 | 3000 | Direct | 230V / 1ph | 27 | Kärcher Axial / 1725 | 9.5 | 695 | 310000 | 51 x 32 x 45 |
| HDS 5.0/30 Eb | 5.0 | 3000 | Direct | 230V / 3ph | 27 | Kärcher Axial / 1725 | 11 | 700 | 398000 | 51 x 32 x 45 |
| HDS 5.0/30 Ec | 5.0 | 3000 | Direct | 460V / 3ph | 19 | Kärcher Axial / 1725 | 11 | 700 | 398000 | 51 x 32 x 45 |
HDS Cabinet
Electric Pump - Electric Burner
Cleaning technology for indoors
This Kärcher all-electric hot water pressure washer introduces hot-water tank technology to deliver hot water on demand ideal for indoor cleaning. Water is heated by flowing through a coil inside an 80-gallon water tank. Heating elements generate 138,000 BTU to produce hot water of up to 180°F. Both models are ETL and CSA certified.
Features:
Heavy-duty, steel cabinets are protected by an epoxy powder coat finish; upper cabinet ventilated for cool operation.
Thermal pump saver valve prevents damage by venting recirculated water.
Low-water flow switch prevents damage to heating elements due to lack of water.
Easy-to-attach detergent injector and four quick couplers nozzles.
Auto start function allows unit to be turned on with pull of the trigger.
EASY!Force gun with cruise control like technology
| Model | GPM | PSI | Drive | HP | Electrical | Amps | Pump | Ship Weight | Ship Dimensions |
| HDS 4.0/20 E Ec | 4.2 | 2000 | Belt | 6.2 | 460V / 3ph | 55 | Kärcher KM | 640 | 32 x 24 x 52 |
| HDS 4.0/30 E Ec | 3.5 | 3000 | Belt | 7.5 | 460V / 3ph | 59 | Kärcher KM | 640 | 32 x 24 x 52 |
| HDS 4.0/20 E Ef | 3.5 | 2000 | Belt | 5 | 575V / 3ph | 46 | Kärcher KM | 620 | 32 x 24 x 52 |
| HDS 4.0/30 E Ef | 3.5 | 3000 | Belt | 7.5 | 575V / 3ph | 49 | Kärcher KM | 640 | 32 x 24 x 52 |
HDS HEATER - Heater 5.0/30 Ed
Hot Water Heater
For attaching to a cold water pressure washer
Our Kärcher Series water heater provides supplemental heat to cold water machines, giving users the benefits of hot water cleaning when it’s needed. An electric-powered diesel heated unit, the Heater 5.0/30 Ed effectively heats water at a rate of up to 5 gallons per minute.
Specs:
Up to 5 GPM
Up to 3000 PSI
120V / 1ph
5 Amps
Heated by Diesel
330 lbs
29” x 41” x 47”
Features:
Leak-free steel-pipe heating coil
Effective heating of up to 5 GPM
ETL certified to UL & CSA standards
