PMW Parts Washers

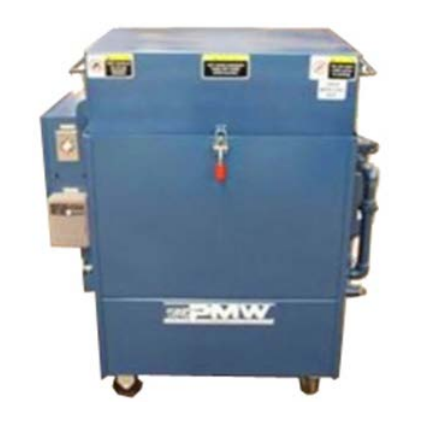

PMW Model 110
This rugged machine is designed for small parts to V-8 blocks. With a 12 ga. steel cabinet, a 2 hp. main pump, lift out turntable, low water shut off and it's portable.
The model 110 is the perfect Power Spray Washer for the small shop as well as an inexpensive additional washer for the large shops overflow work. The model 110 will eliminate the use of a solvent tank. The 110 rugged, heavy duty welded construction assures years of trouble free service and includes key features resulting in performance benefits. The model 110 provides a safe and efficient method to wash parts in both commercial and industrial applications.
Model 110 features:
Safety - Hot water and biodegradable detergents are far safer to work with and environmentally safer to dispose.
Compact - Portable Design - Approximately the size of a solvent tank and rolls on optional casters.
Fully self contained.
Full Automatic - Timed cycle allows user to perform other tasks while parts are washed automatically.
Cleaner Parts - Dirt, oil and grease, naturally separate from water and the wash solution remains cleaner and does not redeposit on the parts. Optional Stainless Steel Belt Oil Skimmer - The oil skimmer removes floating petroleum products.
Turntable Rotation - The turntable turns the parts to ensure a complete exposure to wash solution therefore a cleaner part.
Working Height - 18" under the spray bar. (28" opt'l.)
Optional Hand Brush - A separate pump fed hand brush can be provided for larger parts and special detailing.
Capacity - 300 lbs.
Size - 52"H x 40"W x 34"D
Standard 550 lbs.
PMW Model 112
Made for automotive and light industrial applications this is a real work horse. Standard 26" dia. turntable with 32" of working height. With a 3 hp. pump it has the power to do the job quick.
The Model 112 is the perfect Power Spray Washer for the small shop as well as an inexpensive additional washer for the large shop's overflow work or to isolate aluminum cleaning. The 112 rugged, heavy duty welded construction assures years of trouble free service and includes key features resulting in performance benefits. The model 112 utilizes a hot water soluble cleaning agent.
Model 112 features:
Labyrinth Door Design - eliminates the need for troublesome replacement seals.
32" Work Height - will accept any automotive block, cylinder head or transmission body in today's market.
Door Mounted Turntable - swings out to provide easy access for loading or unloading.
Nine large steel jets to assure quick, thorough cleaning.
500 lb. Capacity - withstands multi-loading heads, blocks, transmissions or parts.
Spring loaded drive motor for constant tension.
Size - 65"H x 52"W x 40"D
Standard 1100 lbs.
PMW Model 113
The same features and working sizes as the Model 112 but is fully insulated and has a larger fluid capacity. Choose this unit if your cleaning needs require constant use.
The model 113 is the perfect Power Spray Washer for the small shop as well as an inexpensive additional washer for the large shops overflow work or to isolate aluminum cleaning. The 113 rugged, heavy duty welded construction assures years of trouble free service and includes key features resulting in performance benefits. The model 113 utilizes a hot water soluble cleaning agent.
Model 113 features:
Labyrinth Door Design - eliminates the need for troublesome replacement seals.
32" Work Height - will accept any automotive block, cylinder head or transmission body in today's market.
Door Mounted Turntable - Swings out to provide easy access for loading or unloading.
Nine large steel jets to assure quick, thorough cleaning.
500 lb. Capacity - withstands multi-loading heads, blocks, transmissions or parts.
Spring loaded drive motor for constant tension.
Fully insulated cleaning chamber for efficient operation.
Other Sizes & Options available.
Size - 65"H x 52"W x 46"D
Standard 1250 lbs.
PMW Model 412
With a standard 5 hp. Pump, 26" dia. turntable, and a 40" working height this washer has many more standard and optional features available. Turntable easily handles loads up to 800 lbs.
The model 412 is ideal for commercial rebuilders and larger shops. 5 H.P. pump, 1/15 H.P. turntable gear motor, 12 Kw. electric heat, Insulated cabinet, Electric lockout, 70 gal. reservoir and 5 cu. ft. parts basket standard. The many options available allow the user to custom design the 412 to meet all applications. Contact P.M.W. for information on other available models.
Model 412 & 412ST (Soak Tank) features:
Labyrinth door design - eliminates the need for troublesome replacement seals.
40" work height - will accept any automotive block, cylinder head or transmission body in todays market.
Door mounted turntable - Swings out to provide easy access for loading and unloading. 800 lb. capacity turntable.
Other Sizes & Options Available.
Size - 78"H x 60"W x 61"D
Standard 1500 lbs.
w/Soak Tank, 1700 lbs.
PMW Model 612
Put up to 1000 lbs. of parts in this power house. With a 36" dia. turntable and 42" of working height it will handle just about any cleaning job with ease. A 7 1/2 hp. pump sprays 110 gpm @ 60 psi.
The model 612 is ideal for commercial rebuilders and larger shops. 7-1/2 H.P. pump, 1/15 H.P. turntable gear motor, 12 Kw. electric heat, Insulated cabinet, Electric lockout, 120 gal, reservoir and 5 cu. ft. parts basket standard. The many options available allow the user to custom design the 612 to meet all applications. Contact P.M.W. for information on other available models.
Model 612 features:
Labyrinth door design - eliminates the need for troublesome replacement seals.
42" work height - will accept any automotive block, cylinder head or transmission body in todays market.
Door mounted turntable - Swings out to provide easy access for loading and unloading. 1000 lb. capacity turntable.
Other Sizes & Options Available.
Size - 84"H x 72"W x 52"D
Standard 1850 lbs.
PMW Model 812
Make room for the super-duty cleaning machine. The PMW Model 812 Power Spray Washer is ideal for commercial rebuilders, industrial applications and large shops. The many options available allow the user to custom design the 812 to meet all applications. The door mounted turntable design is built to provide complete accessibility. Labyrinth door design eliminates the need for expensive replacement seals.
The 812 series machines are available in 6 standard sizes. Up to a 6 ft. diameter turntable with 60" working height and 15000 lbs capacity. Also 15-75 hp. pump motor, fully insulated cabinet, 7-day timer, and much more.
Standard Features:
Door mounted mechanical drive turntable.
1/2 Hp turntable motor.
Front reservoir.
Fully insulated.
Fresh water rinse with manual diverter baffle.
7-day timer.
Labyrinth seal door.
18 KW electric heater.
Stainless steel wash nozzles.
15 HP Standard pump
Compare PMW Models
| 110 | 112 | 113 | 412 | 612 | |
| Pump | 2 HP | 3 HP | 3 HP | 5 HP | 7.5 HP |
| Turntable Diameter | x | 26” | 26” | 26” | 36” |
| Working Height | 18” or 28” | 32” | 32” | 40” | 42” |
| Capacity | 300 lbs | 500 lbs | 500 lbs | 800 lbs | 1000 lbs |
| Size | 52"H x 40"W x 34"D | 65"H x 52"W x 40"D | 65"H x 52"W x 46"D | 78"H x 60"W x 61"D | 84"H x 72"W x 52"D |
| Shipping Weight | 500 lbs | 1100 lbs | 1250 lbs | 1500 lbs | 1850 lbs |
PMW Custom-designed aqueous parts cleaning systems:
PMW has the experience and resources to design and build a cleaning system to match your requirements precisely. These are just a few examples of specialized systems we have built to order, including pass-thru, top-load, belt conveyor, plus many other special systems:
For addition information or questions about a PMW parts washer contact us at 715-754-2207 or send a message.
