Trailers
TULE SERIES HDS 3.5/40 GE MT
TOWABLE AND MANEUVERABLE HOT WATER PRESSURE WASHER
Ready to pick up and go at a moments notice, Kärcher's Tule Series HDS 3.5/40 Ge MT hot water pressure washer trailer provides the necessary cleaning power on virtually any job site which has a water source. Simply unhitch the Tule Series HDS 3.5/40 Ge MT and take the cleaning power where you need it most. The Tule Series trailer features a reliable Honda engine, 8 gallon diesel fuel tank, electric start with manual start backup and much more.
U.S. Design Patent No. 9,724,734 B2
Features & Specs
Honda GX 390 engine
8 gallon diesel fuel tank
Adjustable thermostat for water temperature regulation
Electric start with manual start backup
1000 lbs
3.5 GPM
4000 PSI
Direct Drive
12V / DC Burner
Kärcher KS Pump
100 x 45 x 75
TRK-2500 HDS 4.7/35
CONVENIENT CLEANING PERFORMANCE
Karcher’s TRK-2500 HDS 4.7/35 pressure washer trailer package includes the TRK-200 trailer, HDS 4.7/35 Pe Cage pressure washer, mounting kit, battery and high and low-pressure hose reels. This package is rugged, affordable, versatile, and easy to ship and store.
The TRK-2500 is made of rugged 10-gauge steel. The wheel and axle assembly features leaf-spring suspension of up to 3,500 lbs. The 39-inch tongue features a swing-away hinge that saves on storage space.
Pump:
Honda GX 630 Gas Engine
688 CC
120V AC Burner
4.7 GPM
3500 PSI
Trailer:
Electrical wiring recessed within tubular frame
Lighted license plate holder and recessed tail lights
1,000 lb. swivel jack with a 2-inch ball coupler for quick and easy hook up of the trailer
3-way ball valve for easy switching of the water flow from the holding tank to a faucet
(GVWR) 3500 lbs
TRK-2500
High cleaning performance.
Kärcher’s TRK-2500 pressure washer trailer is designed to accommodate a variety of pressure washer skids. This trailer package is rugged, affordable, versatile, and easy to ship and store.
The TRK-2500 is made of rugged 10-gauge steel. The wheel and axle assembly features leaf-spring suspension of up to 3,500 lbs. The 39inch tongue features a swing-away hinge that saves on storage space.
Shown with option hot water pressure washer skid
Smart and reliable
Electrical wiring recessed within tubular frame
1,000 lb. swivel jack with a 2-inch ball coupler for quick and easy hook up of the trailer
3-way ball valve for easy switching of the water flow from the holding tank to a faucet
High-density, polyethylene 200-gallon water tank with a 12-inch access port, 1 1/2-inch drain valve, 3/4-inch float valve and a 50-mesh inlet filter; and two 5/16-inch chains for additional safety
Electric brakes and break away kit
Lighted license plate holder and recessed tail lights
TRK-3000
TRK-3500 & TRK-6000
CUSTOMIZABLE MOBILE SOLUTION
Kärcher has made customizing a mobile wash system for on-site cleaning as easy as 1-2-3:
1: Choose from 3 rugged trailers—the dual-axle TRK-6000 with 330-gallon water tank or the single-axle TRK-3500 or TRK-2500 with 200-gallon water tank.
2: Choose a compatible skid-mounted hot water pressure washer.
3: Customize your trailer with a broad selection of options and accessories, such as hose reels, chrome coverings, etc.
Features:
Electrical wiring recessed within tubular frame.
Lighted license plate holder and recessed tail lights.
1,000 lb. swivel jack with a 2-5/16-inch ball coupler for quick and easy hook up of the trailer.
Two 3-way ball valve for easy switching of the water flow from the holding tank to a faucet .
Rugged steel cage for security while transporting.
High-density, polyethylene 200-330 gallon water tank with a 12-inch access port, 1 1/2-inch drain valve, 3/4-inch float valve and a 50-mesh inlet filter; and two 5/16-inch chains for additional safety.
Electric brakes and break away kit.

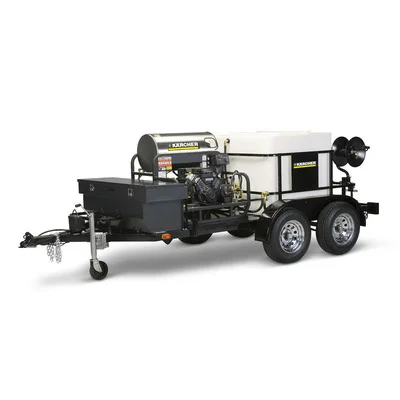

TRK-6000
| Model | Axle | (GVWR) lbs. | Water tank (gallons) | Ship Weight |
| TRK-3500 | Single | 3500 | 200 | 840 |
| TRK-6000 | Tandem | 6000 | 330 | 1980 |
