Magido X 51/2 Series Parts Washer

Magido L-103 & L-123


L – 103 L – 123
Heater / Temperature 150 F 150 F
Load Height 19" 19"
Load Weight 441 lbs 775 lbs
Number of Rinse Pumps 1
Number of Wash Pumps 1 1
Overall Dimensions ( Lid Open) 48.5" x 51" x 78" 58.75" x 69" x 89"
Pump 2 HP / 34psi 2 HP / 34psi
Tank Capacity Wash-35 gal / Rinse-23 gal
Turntable Dimensions 36" 36"
Voltage 220V 1 Ph 50A or 480 3Ph 220V 1 Ph 50A or 480 3Ph

X51/2 Series parts washers are automatic spray jet wash systems with dual tanks for wash and rinse stages that insure a residue free finish. Each washer is constructed using AISI 304 stainless steel and come in 3 models with turntable sizes ranging from 35” to 45”. Wash systems are equipped with a rotating turntable and a spray bar that uses water pressure for washing medium and large-sized parts. The wash and rinse stages are controlled by PLC control operation that prevent cross contamination in the tanks. Additional options for filtration and drying stages are available.

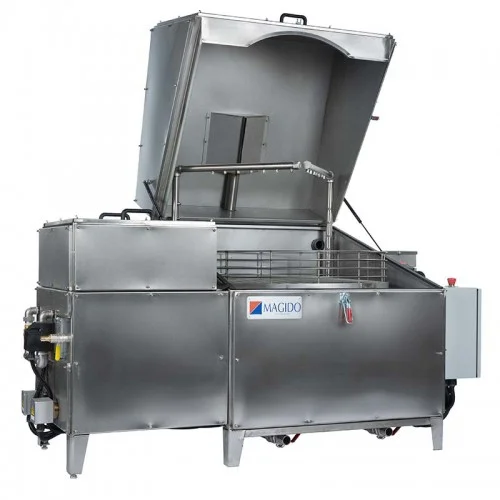

These parts washers are an automatic spray jet wash system with a dual tank system for wash and rinse stages that will insure a residue free finish. This washer is constructed using AISI 304 stainless steel with turntable diameter of 36”. They are equipped with a rotating turntable and a spray bar that uses water pressure to speed the cleaning process. The wash and rinse stages are controlled by PLC control operation that prevent cross contamination in the tanks. Additional options for filtration and drying stages are available.

These wash systems are ergonomic and engineered to reduce your shop labor cost without sacrificing wash performance. Simply by loading the parts that need to be cleaned on the turntable, the operator starts the automatic cycle and can then return to their task at hand.

Features:

  • Heavy Duty Stainless Steel Construction
  • Heated Rinse Stage
  • Ergonomic Design
  • Swing Away Spray Manifolds

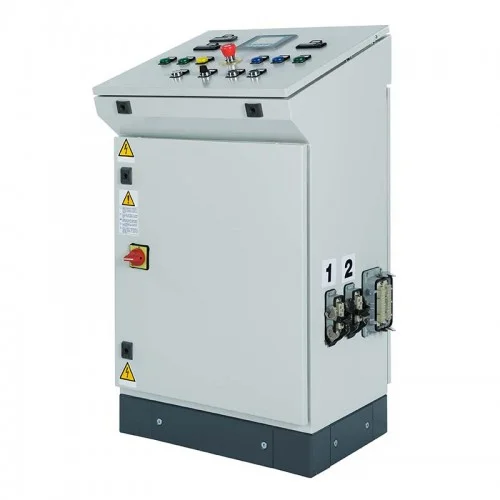

  • Freestanding Control Console With PLC Touch Screen Control
  • Automatic Turntable Motor
  • Solution Filter
  • Thermostat Controlled Electrical Heaters
  • Automatic Liquid Level Shut Off
  • Tank Drain
  • Tank Insulation
  • Auto Fill
  • Low Noise Operation



Options:

  • Air Blow-Off Cycle
  • Filtration Stages
  • Removable Turntable With Rolling Cart
  • Drain Pump
