All Magido Parts Washers
MAGIDO is recognized as one of the industry’s leading manufacturers of aqueous parts washing systems. With careful choice of their quality materials they use during the manufacturing process, along with the experience gained over time and the constant search for innovative solutions and technologies that value to their finished product.
Magido Platinum Rotary Basket Parts Washer

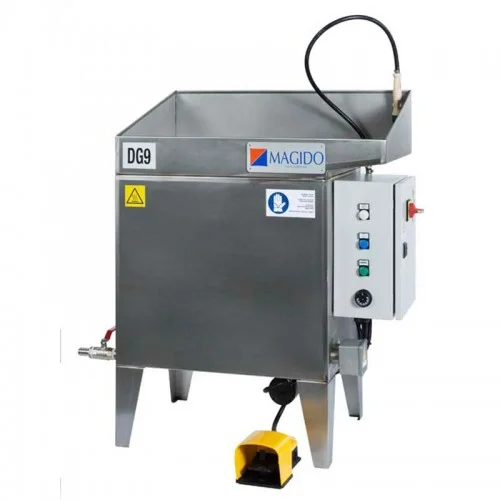

Magido manual parts washers are engineered to handle the most rigorous challenges that are commonalty found in Industrial-Automotive maintenance cleaning applications. Magido manual parts washers are designed to use environmentally safe aqueous (water-based) cleaning solutions for safe and effective parts cleaning applications.
X-51 & X-81 Automatic Parts Washing Series

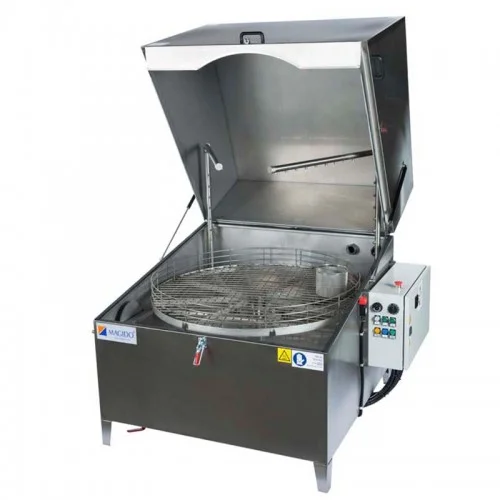

Magido X-51 and X-81-Series parts washers are engineered for automatic spray parts washing applications utilizing aqueous detergents at a temperatures of 150°F. The operation principle is based on a rotating platform on which the parts are placed, and a series of angled water jet nozzles, which optimally wash all the areas of the parts needed to be cleaned. X-Series wash systems are mainly categorized by the size and capacity of the turntable with sizes ranging from 14” to 55” in diameter. All machines are constructed in AISI 304 stainless steel and additional options are available for filtration, rinsing and drying stages.
X51/2 Automatic Spray Jet Wash Series
X51/2 Series parts washers are automatic spray jet wash systems with dual tanks for wash and rinse stages that insure a residue Free finish. Each washer is constructed using AISI 304 stainless steel and come in 3 models with turntable sizes ranging from 35” to 45”. Wash systems are equipped with a rotating turntable and a spray bar that uses water pressure for washing medium and large-sized parts. The wash and rinse stages are controlled by PLC control operation that prevent cross contamination in the tanks. Additional options for filtration and drying stages are available.
The X-53-series parts washers are engineered for automatic spray parts washing applications utilizing aqueous detergents at a temperatures of 160°F. The operation principle is based on a fixed platform on which the parts are placed, and a series of angled water jet nozzles that are fixed on a spray ramp optimally wash all the areas of the parts needed to be cleaned. X-53 Series wash systems are mainly categorized by the size and capacity of the turntable with sizes up to 60”x 60” in diameter. The turntable removes easily from the wash system on to a mobile cart for easy loading and unloading. All machines are constructed in AISI 304 stainless steel with additional options available for filtration, rinsing and drying stages.
Magido X53/2 Series parts washers are engineered for automatic spray parts washing cleaning utilizing aqueous detergents at a temperatures of 160°F. The operation principle is based on a fixed platform on which the parts are placed, and a series of angled water jet nozzles that are fixture on a on a spray ramp optimally wash all the areas of the parts needed to be cleaned. The wash and rinse stages are controlled by PLC control operation that prevent cross contamination in the tanks. X53-2 Series wash systems are mainly categorized by the size and capacity of the turntable with sizes up to 60”x60” in diameter. The turntable removes easily from the wash system on to a mobile cart for easy loading and unloading. All machines are constructed in AISI & 304 stainless steel with additional options available for filtration, rinsing and drying stages.
Inline Belt Conveyor Wash Systems
Magido industrial in-line conveyor wash systems are the right choice your flow-through cleaning process. Each wash system is customized to your exact specifications and typical process zones may include prewash, wash, rinse, rust prevention, blow-off and drying stages.
The ULTRA Ultrasonic Series features a robust stainless steel design for heavy duty parts washing applications.
During the wash cycle, the pneumatically operated lift platform lowers the workload into the tank and agitates with an up-and-down motion, while powerful ultra sonic energy quickly removes soils from hard to clean areas.
Rotary Drum Parts Cleaning System
Our industrial rotary-auger wash systems are the right choice your continuous parts cleaning process. In the cleaning operation parts are augured through the machines processing drum and cleaned by a dual action process that combines both submersion that flushes inside of hollow parts and spray cleaning action that cleans the exterior. Each wash system is customized to your exact specifications and typical process zones may include pre-wash, wash, rinse, rust prevention, blow-off and drying stages.
Industrial Rotary-Immersion Style
Magido’s industrial rotary-immersion style wash systems are the right choice for your work cell parts cleaning process. In the cleaning operation the parts washer cleans parts in baskets or fixtures by rotating them in a turbulent immersion parts washing bath combined with a spray cleaning cycle. The cleaning cycle is followed by a combination of spray and immersion rinsing with an available stage for drying. Each wash system is customized to your exact specifications.
