Front-Load

Cuda Front-Load Parts Washer Models

Rugged, high-capacity Cuda Automatic parts washers use pressurized hot water and specialized industrial detergents to safely blast away dirt, grease and grime while you are doing more productive work.

Solvents have serious heath effects, disposal problems and are becoming a thing of the past.  Replace your solvent tank to a get safer and better cleaning alternative.

Cuda is the leading innovator in parts washers.  You get the best performance and more standard features & options than with any other brand.

Don't waste time - Load & Go.  A single parts washer can support three or four technicians, which allow them to complete more constructive tasks.

The 90-day labor warranty for all Cuda parts washers is automatically extended to a 1-Year Labor Warranty with exclusive use of Cuda detergents.  Cuda parts washers are also covered by a 1-year parts warranty


Cuda 2530

Cuda 2530

Cuda 2530:  Our smallest front-load

  • 30-inch working height

  • 25-inch turntable

  • 500-lb load capacity

  • 3 HP vertical seal-less pump producing 50 GPM @ 50 PSI

  • Operates at 150-170 degrees F

  • Dimensions - 74''h x 45''w x 48"h

  • Ship Weight - 985 lbs

  • Available in Stainless Steel & Mild Steel


Cuda 2840

Cuda 2840

Cuda 2840:  The next size larger

  • 28-inch turntable

  • 40-inch working height

  • 1000-lb load capacity

  • 3 HP vertical seal-less pump producing 50 GPM at 50 PSI

  • Available in Stainless Steel & Mild Steel


Cuda 2848

Cuda 2848

Cuda 2848:  The biggest of the small

  • 28-inch turntable

  • 48-inch working height

  • 1000-lb load capacity

  • 5 HP vertical seal-less pump producing 110 GPM at 50 PSI

  • Available in Stainless Steel & Mild Steel


Cuda 3648

Cuda 3648

Cuda 3648:  New mid-range washer

  • 36-inch turntable

  • 48-inch working height

  • 2500-lb load capacity

  • 7.5 HP vertical seal-less pump producing 150 GPM at 50 PSI

  • 113-gallon sump capacity

  • Available in Stainless Steel & Mild Steel


Cuda 4860

Cuda 4860

Cuda 4860:  Have tall parts?

  • 48-inch turntable

  • 60-inch working height

  • 5000-lb load capacity

  • 7.5 HP vertical seal-less pump producing 200 GPM at 50 PSI

  • 156-gallon sump capacity

  • 18kW Heater

  • Optional Height Extensions

  • Available in Stainless Steel & Mild Steel


Cuda 7248

Cuda 7248

Cuda 7248:  Wide size

  • 5000-lb load capacity

  • 48-inch working height

  • 72-inch turn table

  • 200 gallon sump capacity

  • 7.5 HP vertical seal-less pump delivering 160 GPM @ 45 PSI

  • Push button table jog

  • Low water shutdown

  • Rear forklift extension pockets protect electrical equipment

  • Stainless steel sump doors

  • Available in Stainless Steel & Mild Steel


Cuda 7272

Cuda 7272

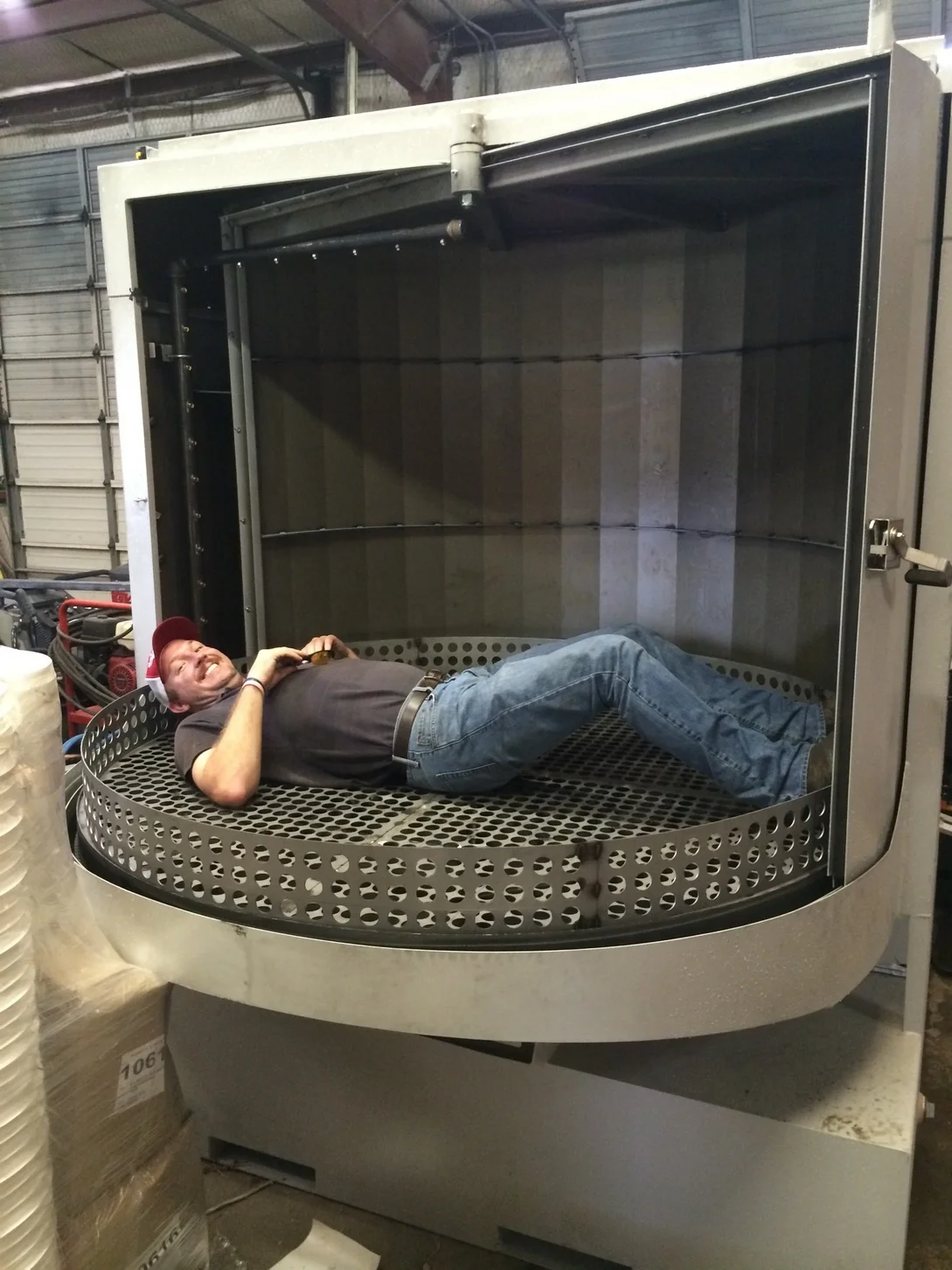

Cuda 7272:  Wide & Tall

  • 5000-lb load capacity

  • 72-inch working height

  • 72-inch turntable

  • 200 gallon sump capacity

  • 7.5 HP vertical seal-less pump delivering 150 GPM @ 55 PSI

  • Push button table jog

  • Low water shutdown

  • Rear forklift extension pockets protect electrical equipment

  • Stainless steel sump doors

  • Available in Stainless Steel & Mild Steel

  • 100"L x 85"W x 126"H


Features

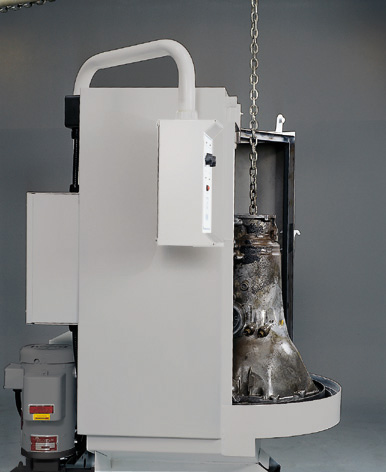

Space Saver Roll-In Door

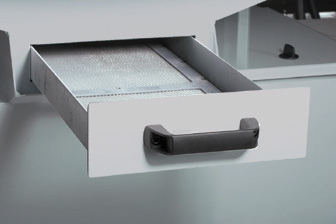

Front Access Debris Screen

Allows easy access to the entire wash chamber, and requires no additional clearance above or in front of the machine.

The patented front access debris screen filters debris particles from the wash solution to ensure clear spray nozzle operation, and also provides a safeguard against small parts that might accidentally be washed through from the cleaning chamber.

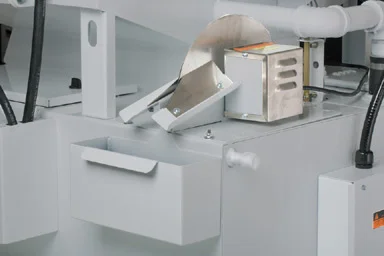

Integrated Oil Skimmer

With stainless steel disc and wiper blades, the skimmer effectively removes oil and grease from the cleaning solution to prolong it's useful life, and to provide a means for convenient oil and grease disposal.

Control Panel

Easy to understand and operate; located at eye level.


Options

  • Pneumatic Power Brush - Rotating at 1800 rpm, the steel bristles effortlessly whisk away even stubborn carbon deposits and gasket material.
  • Detail Tray with Dedicated Sump - The detail tray folds down to provide a convenient work area for the power brush and hand detail brush.  The dedicated sump, completely independent of the main sump, can be filled with any type of cleaning solution.
  • Preferred Options Package - Parts Tree, Parts Basket, Containment Ring and Oil Container
  • Deluxe Kit - Includes Detail and Power Brush with Side-Mounted Tray, Sink and Sump
  • Height Extensions (factory installed) provide extra height in the wash area (2848 &4860 only)
  • 2-Tier Turntable - Adds second turntable for greater capacity
  • 4-Hook Parts Tree - To Hang Parts
  • Heater & Skimmer Timers - 24 hour / 7 Day

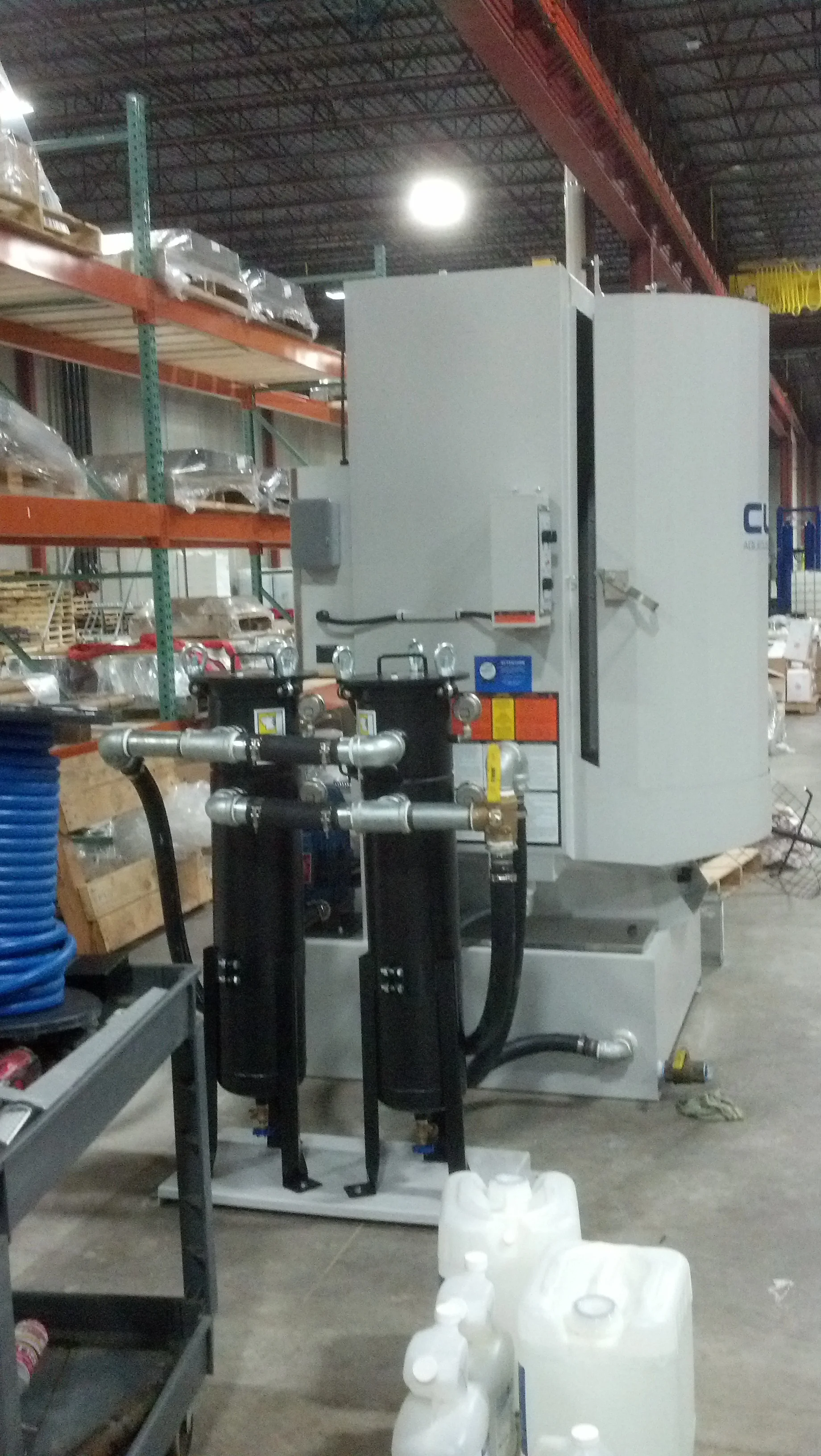

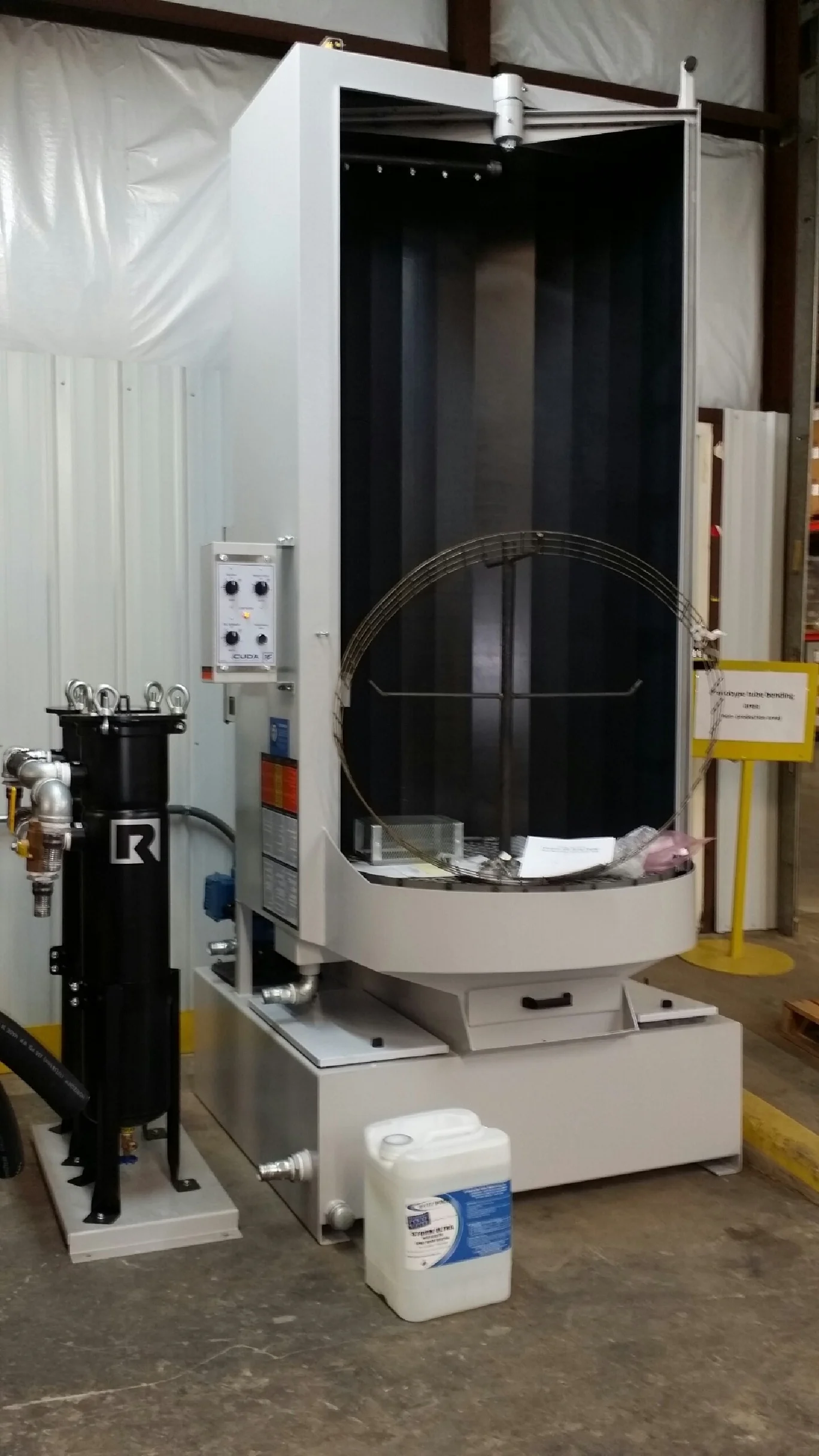

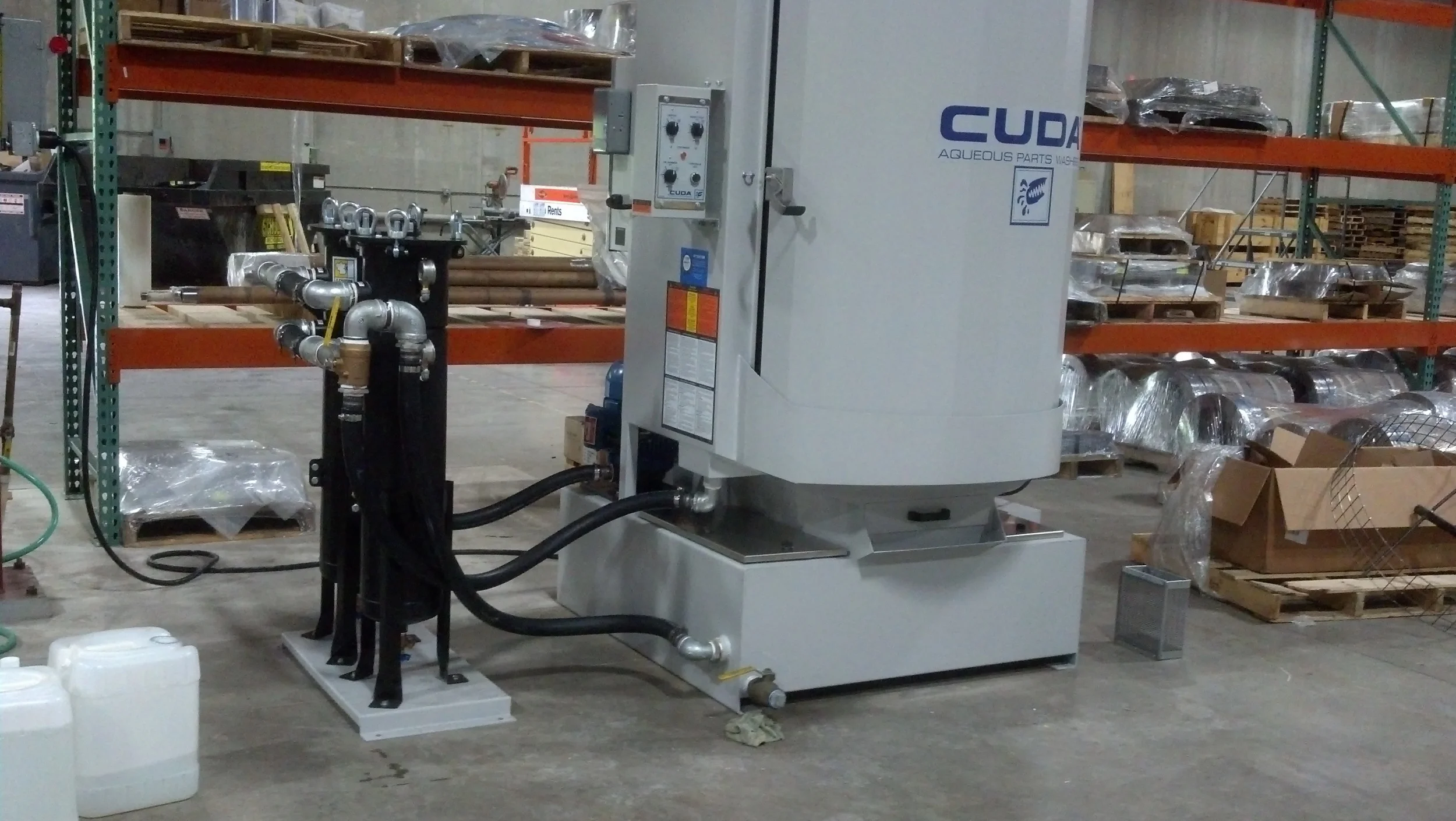

  • Filtration & Sump Sweep (field installed only) - Quickly removes sediment from the sump floor through 100 micron filters to help extend the life of wash water
  • Automatic Water Fill - Automatically adds water if water level drops
  • Hour Meter - Displays elapsed time
  • 60-Mesh Debris Screen Tray Insert - Provides more thorough screening of sump solution
  • Containment Rings - 25", 28" 36" & 48" diameter - keeps parts on turntable
  • PK-100D Sump Cleaner - Provides an economical and efficient way  to process and extend the life of wastewater
  • Oil Drain Container - Collects oil from skimmer
  • Small and Large Parts Baskets - For smaller parts cleaning
  • Waste Water Drum Evaporator - Ideal for eliminating very low volumes of waste water for drying sludge
  • Stainless Steel Upgrade - Available for all models, call for quote

Specifications

Model 2530 Series 2840 Series 2848 Series 3648 Series
Working Height 30 Inches 40 Inches 48 Inches 48 Inches
Turntable Diameter 25 Inches 28 Inches 28 Inches 36 Inches
Load Capacity 500 lbs. 1000 lbs. 1000 lbs. 2500 lbs.
Number of Nozzles 12 12 18 21
Pump Capacity 50 GPM @ 50 PSI 50 GPM @ 50 PSI 110 GPM @ 50 PSI 150 GPM @ 50 PSI
Sump Capacity 40 gal 50 gal 50 gal 113 gal
Pump Motor 3 HP 3 HP 5 HP 7.5 HP
Electric Heater 6 kW 6 kW 9 kW 18 kW
Power Available 208V, 1 Ph, 40 Amps
208V, 3 Ph, 24 Amps
230V, 1 Ph, 38 Amps
230V, 3 Ph, 23 Amps
460V, 3 Ph, 11 Amps
575V, 3 Ph, 9 Amps
208V, 1 Ph, 40 Amps
208V, 3 Ph, 24 Amps
230V, 1 Ph, 38 Amps
230V, 3 Ph, 23 Amps
460V, 3 Ph, 11 Amps
575V, 3 Ph, 9 Amps
208V, 1 Ph, 60 Amps
208V, 3 Ph, 37 Amps
230V, 1 Ph, 58 Amps
230V, 3 Ph, 36 Amps
460V, 3 Ph, 17 Amps
575V, 3 Ph, 14 Amps
230V, 3 Ph, 58 Amps
460V, 3 Ph, 32 Amps
575V, 3 Ph, 26 Amps
Dimensions 74”h x 45”w x 48”d 80”h x 50”w x 51”d 88”h x 50”d x 51”d 94”h x 49”w x 57”d
Ship Weight 985 lbs. 1100 lbs. 1065 lbs. 1380 lbs.
Model 4860 Series 7248 Series 7272 Series
Working Height 60 Inches 48 Inches 72 Inches
Turntable Diameter 48 Inches 72 Inches 72 Inches
Load Capacity 5000 lbs. 5000 lbs. 5000 lbs.
Number of Nozzles 26

Pump Capacity 200 GPM @ 50 PSI 160 @ 45 PSI 150 GPM @ 50 PSI
Sump Capacity 156 gal 200 gal 200 gal
Pump Motor 7.5 HP 7.5 HP 7.5 HP
Electric Heater 18 kW (2) 9kW (2) 9kW
Power Available 230V, 3 Ph, 67 Amps
460V, 3 Ph, 32 Amps
575V, 3 Ph, 26 Amps
230V, 3 Ph, 60 Amps
460V, 3 Ph, 60 Amps
575V, 3 Ph, 60 Amps
230V, 3 Ph, 60 Amps
460V, 3 Ph, 60 Amps
575V, 3 Ph, 60 Amps
Dimensions 106”h x 66”w x 75”d 100”h x 105”w x 85”d 100”h x 85”w x 126”d
Ship Weight 2457 lbs. 3200 lbs.

  • Conforms to ANSI/UL Standard 73 eights edition

  • Meets OSHA Regulations 1910.399

  • Certified to CAN/CSA Standard C-22.2 #68-92

  • All Cuda Standard parts washers are ETL-C Certified.
